Cov khoom

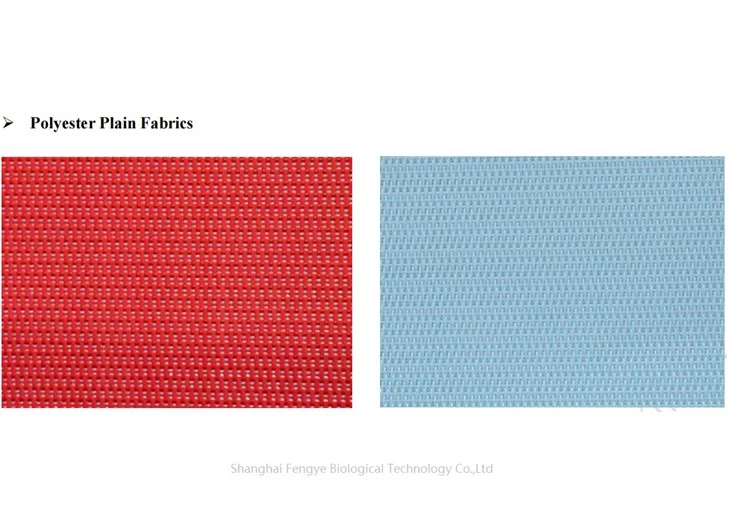

Polyester Mesh rau Screen Luam Ntawv

Polyester Muab Kum Xov Xwm Lim FRAB yog siv hauv ntawv ua, luam ntawv thiab dyting, zaub mov {}} kua sib cais kev lag luam.

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

Polyester Muab Kum Xovxwm Lim Fabrics

product-900-383

PIC.15 Polyester Muab Kum Xovxwm Lim Fabrics

Daim ntawv thov:

Polyester Muab Kum Xov Xwm Lim FRAB yog siv hauv ntawv ua, luam ntawv thiab dyting, zaub mov {}} kua sib cais kev lag luam.

Rooj 7 Cov lus qhia tshwj xeeb ntawm Muab Kauv Lim Ntaub

Hom	Hom No.	Hlau Dia. (Hli)			Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Yeeb yaj kiab	Tus muab tub lim	Lub zog	Permeability (m3 / m2h)
Voj	Lw4080iv	0.90	1.10	0.90*4	Ntau dua los yog sib npaug rau 2300	10235±500
	Lw4080v	0.90	1.10	0.90*5	Ntau dua los yog sib npaug rau 2300	6317±500
	L05902	0.9	0.9	0.90*4	Ntau dua los yog sib npaug rau 1600	14269±500
Nruab nrab voj	L06802	0.8	O.8	0.80*4	Ntau dua los yog sib npaug rau 1600	12582±500
	LW3868III	0.70	0.90	0.80*3	Ntau dua los yog sib npaug rau 2000	10320±500
	Lw3868iv	0.70	0.90	0.80*4	Ntau dua los yog sib npaug rau 2000	8500±500
Micro Voj	LW3252III	0.52	0.70	0.68*3	Ntau dua los yog sib npaug rau 1800	2850±500
Nruab nrab voj (Tiaj tus hlau)	LW3868J	0.70	0.70	0.24*0.85	Ntau dua los yog sib npaug rau 2000	10100±500

Polyester kauv tshuab cov tshuab

Daim ntawv thov:

Yog tsim nyog rau kom qhuav ntim daim ntawv, ntawv kab lis kev cai, board ntawv thiab pulp board

Rooj 8 Cov lus qhia tshwj xeeb ntawm cov kauv drier ntaub

Hom	Hom No.	Hlau Dia. (Hli)		Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Yeeb yaj kiab	Lub zog	Permeability (m3 / m2h)
Corearse	LW90110	0.90	1.10	Ntau dua los yog sib npaug rau 2300	21000±500
Voj	Lw4080	0.40	0.80	Ntau dua los yog sib npaug rau 2000	18000±500
Nruab nrab voj	LW3868	0.38	0.68	Ntau dua los yog sib npaug rau 2000	16000±500
Npog Zoo	LW3560	0.35	0.60	Ntau dua los yog sib npaug rau 2000	15000±500
Micro Voj	LW3252	0.32	0.52	Ntau dua los yog sib npaug rau 1800	15000±500

Polyester Cov Tshuab Ziab Khaub Ncaws

PIC.16 Polyester Cov Tshuab Ziab Khaub Ncaws

Daim Ntawv Thov:

Lub tshuab ziab khaub ncaws hauv cov ntawv ua lag luam. Kev ua yeeb yam ntawm cov sijhawm thiab kev ruaj khov yog qhov tseem ceeb heev rau kev tsim khoom.

Rooj 9 tshwj xeeb ntawm cov ziab qhuav

Hom	Hom No.	Hlau Dia. (Hli)				Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Hlau / cm	Yeeb yaj kiab	Hlau / cm	Lub zog	Permeability (m3 / m2h)
3 shed series	22503	0.50	24	0.50	12	Ntau dua los yog sib npaug rau 2000	8000±500
4 shed series	20504	0.50	22	0.50	12	Ntau dua los yog sib npaug rau 1900	13000±500
	22504	0.50	24	0.50	12	Ntau dua los yog sib npaug rau 2000	12000±500
	24504	0.50	26	0.50	12	Ntau dua los yog sib npaug rau 2100	11000±500
Hloov Cov Hlau Npuag	4106	0.50	22	0.50	12.4	Ntau dua los yog sib npaug rau 2000	6800±500

Polyester Cov Ntaub Ua Haujlwm Dawb


PIC.17 & 18 polyester dawb cov ntaub

Daim Ntawv Thov:

Lub tshuab ziab khaub ncaws hauv cov ntawv ua lag luam thiab ntoo vaj huam sib luag tsim khoom lag luam.

Rooj 10 Cov lus qhia tshwj xeeb ntawm cov ntaub dawb

Hom	Hom No.	Hlau Dia. (Hli)				Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Hlau / cm	Yeeb yaj kiab	Hlau / cm	Lub zog	Permeability (m3 / m2h)
Tiaj Hlau Hlau Series Series	4106-1	0.38*0.58	16.66	0.50	15	Ntau dua los yog sib npaug rau 2000	5950±500
	4106-2	0.38*0.58	18	0.40/0.6	14.66	Ntau dua los yog sib npaug rau 2000	4800±500
	Pob zeb sl4106	0.5*0.75	14.66	0.60/0.40	12.66	Ntau dua los yog sib npaug rau 2100	6000±500
	Toj kawg nkaus	0.25*1.05	9	0.60/0.90	7	Ntau dua los yog sib npaug rau 2200	2100±500

Polyester Kev Fuav


Pic .19. 4-} shed ib txheej	Pic .20 8-} shed ib	Pic .21 16-} shed 2.5	Pic .22 20-} shed triple

Daim ntawv thov:

Yog tsim nyog rau cov ntawv tshuab thiab siab - ceev ntawv ua tshuab

Rooj 11 Cov lus qhia tshwj xeeb ntawm kev sib sau cov ntaub

Hom	Hom No.	Hlau Dia. (Hli)				Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Hlau / cm	Yeeb yaj kiab	Hlau / cm	Lub zog	Permeability (m3 / m2h)
4 shed nkaus xwb txheej ntaub	27254	0.20	29	0.25	22	Ntau dua los yog sib npaug rau 600	7500±500
	27274	0.20	30	0.27	22.5	Ntau dua los yog sib npaug rau 600	7500±500
	31204	0.20	35	0.22	28	Ntau dua los yog sib npaug rau 600	6500±500
5 shed nkaus xwb txheej ntaub	27255	0.20	30	0.25	23	Ntau dua los yog sib npaug rau 600	7600±500
	27285	0.22	30	0.28	23	Ntau dua los yog sib npaug rau 500	7800±500
	31205	0.20	35	0.21	32	Ntau dua los yog sib npaug rau 600	6700±500
8 txiav ib txheej txheej ntaub	25358	0.22	28	0.35	19.5	Ntau dua los yog sib npaug rau 700	9000±500
	25408	0.22	29.5	0.40	19	Ntau dua los yog sib npaug rau 700	8500±500
	27358	0.22	29	0.35	20	Ntau dua los yog sib npaug rau 700	8500±500
	27408	0.22	31.5	0.40	19	Ntau dua los yog sib npaug rau 700	8000±500
8 txiav ob chav txheej txheej ntaub	56188	0.17	61.3	0.19/0.22	51.2	Ntau dua los yog sib npaug rau 850	6800±500
	60188	0.18	66	0.18/0.20	49	Ntau dua los yog sib npaug rau 900	6000±500
	62188	0.15	70.5	0.16/0.17	50.5	Ntau dua los yog sib npaug rau 900	5700±500

Rooj 12 Cov lus qhia tshwj xeeb ntawm kev sib sau cov ntaub

Hom	Hom No.	Hlau Dia. (Hli)				Lub zog	Permeability (m3 / m2h)
Hom	Hom No.	Warp	Hlau / cm	Yeeb yaj kiab	Hlau / cm	Lub zog	Permeability (m3 / m2h)
16 los ob thiab ib nrab txheej txheej ntaub	365016	0.28	37-38	0.20,0.27/0.50,0.50	31-32	Ntau dua los yog sib npaug rau 600	7500±500
	424516	0.25	48-49	0.20,0.25/0.45,0.45	42-43	Ntau dua los yog sib npaug rau 600	7500±500
	562516	0.18	57-58	0.13,0.18/0.25,0.25	46-47	Ntau dua los yog sib npaug rau 600	6500±500
	563516	0.20	56-57	0.13,0.25/0.35,0.35	61-62	Ntau dua los yog sib npaug rau 600	7600±500
	602516	0.18	62-63	0.13,0.20/0.25,0.25	55-56	Ntau dua los yog sib npaug rau 500	7800±500
	603516	0.20	61-62	0.13,0.25/0.35,0.35	52-53	Ntau dua los yog sib npaug rau 600	6700±500
20 TSUA TAIS TES txheej ntaub	563520	0.15,0.20	70	0.15,0.15/0.35/0.35	55	Ntau dua los yog sib npaug rau 1600	5000±500
24-Muab cov ntaub pua taw dile txheej npuag	364024	0.20/0.20	42	0.20,0.17/0.40,0.40	52	Ntau dua los yog sib npaug rau 1600	6500±500
