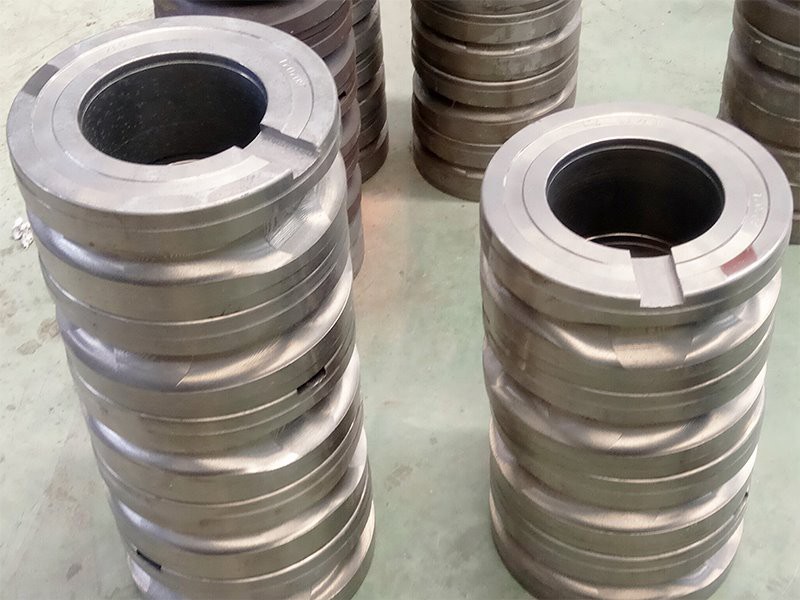

Tuag Roll thiab Mandrel

Pilger Roll thiab Mandrel

Duab. Pilger Tuag Roll	Duab. Pilger Tuag Roll

Kev piav qhia

Cold pilgering yog cov txheej txheem longitudinal txias dov uas txo txoj kab uas hla thiab phab ntsa thickness ntawm cov hlau raj hauv ib kauj ruam txheej txheem. Nyob ntawm cov khoom siv, cov txheej txheem txias pilger ua tiav qhov kev txo qis ntawm ntau dua 90 feem pua ​​hauv ib lub voj voog ua haujlwm.

Duab. Txheej txheem ntawm cov yeeb nkab ntau lawm

Txias pilgering yog txheej txheem dov rau cov raj hlau uas txo cov diameters thiab phab ntsa thicknesses. PROCESS Nyob rau hauv lub raj yog ib tug nyob ruaj ruaj mandrel (1) uas tapers nyob rau hauv lub dov kev taw qhia. Qhov no yog txuas mus rau ib tug ntev mandrel bar (2) uas yog ruaj nyob rau hauv, thiab tig los ntawm, ib tug thrust block. Ob tug tuag (3) "daim ntawv" tubular Tshuag nyob rau hauv tib txoj kev uas ib tug dov pin yob tawm pastry. Ob tug tuag no yog mounted rau hauv ib lub eeb reciprocating (4). Lawv tsav pinions mesh nrog ob qhov chaw nres tsheb. Qhov ntawd yog li cas cov tuag tig rov qab thiab tawm hauv synchronization nrog lub eeb reciprocating. Lub eeb, nyob rau hauv lem, yog tsiv rov qab los ntawm ib tug crank tsav nyob rau hauv tib txoj kev raws li ib tug piston nyob rau hauv lub engine ntawm lub tsheb tsav.

Duab. Daim ntawv thov ntawm Pilger Roll thiab Mandrel (Duab los ntawm SMS-Group)

Khoom siv

Tam sim no peb ua lub dab ntxuav tes yob thiab stabilizing yob nyob rau hauv cov ntaub ntawv zoo SUS316L.Rau siab thov kawg cov neeg siv, peb npaj txheej txheej tungsten carbide thiab ceramic rau saum npoo ntawm dab ntxuav tes yob thiab stabilizing yob los ntawm HVOF.

Yam ntxwv

● High Abrasion Resistance;

● Uniform High Deg Hardness;

● Kev Ua Haujlwm Kub Kub Zoo heev;

● High Precision ntawm Grooves

Txheej txheem ntau lawm

Peb tsim cov pilger tuag yob los ntawm hwm ESR ingot khoom. Raws li kev kos duab tsim, peb forge thiab anneal lub ingot rau hauv yob dawb paug. Tom qab ntawd peb ua ib tug ntxhib machining ntawm yob dawb paug. Txhawm rau kom ntseeg tau tias muaj zog ua haujlwm siab thiab hardness uniformity, peb txais yuav lub tshuab nqus tsev rau kev kho cua sov. Raws li qhov siab precision ntawm cov kav dej seamless, nws thov tshwj xeeb meej ntawm grooves ntawm tuag yob. Peb muab ob lub CNC sib tsoo zeb los ntawm SMS Meer. Peb cog lus rau qhov zoo tshaj plaws rau peb cov neeg siv khoom.

Duab. Ipsen Lub tshuab nqus tsev vacuum	Pic.SMS Meer CNC Sib Tsoo Tshuab

Daim ntawv thov

Lub tshuab txias pilger yog dav siv nyob rau hauv stainless hlau industrial, ferritic steels, tsawg alloy steels, Incoloy, Zircaloy, tooj liab thiab titanium alloys.

Cim npe nrov: tuag yob thiab mandrel, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized
