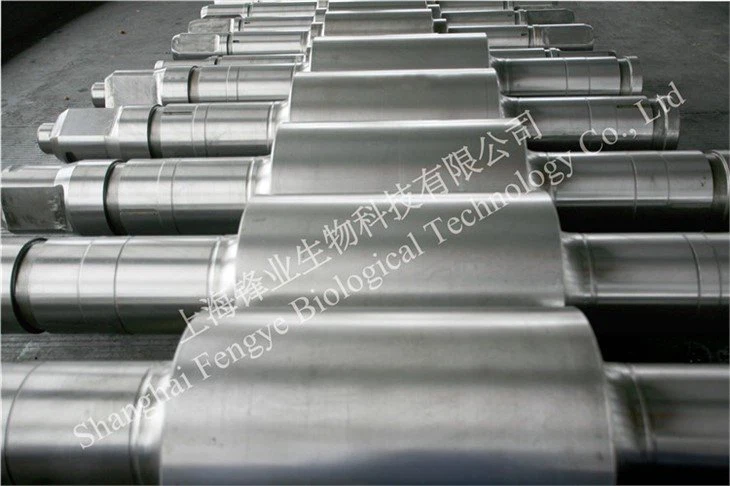

Hlau Rod Rolling Mill Roll
Cov cam khwb cia yob yog dav siv los ua haujlwm yob hauv cov kub dov mills hauv steel industrial. Cov kub dov mills yog suav nrog hlau qws dov zeb, rebar dov zeb, profile steel dov zeb thiab kub strip dov zeb.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Cast Roll
Kev piav qhia
Cov cam khwb cia yob yog dav siv los ua haujlwm yob hauv cov kub dov mills hauv steel industrial. Cov kub dov mills yog suav nrog hlau qws dov zeb, rebar dov zeb, profile steel dov zeb thiab kub strip dov zeb. Rau cov khoom sib txawv hauv ntau lub mills, qhov kev thov ntawm cov cam khwb cia yob yog txawv heev. Piv txwv li, cov ntaub ntawv rau cov pob zeb ntxhib sawv ntsug yog txawv ntawm qhov chaw ua tiav. Tsis tas li ntawd, cov ntaub ntawv rau hlau qws zeb yuav txawv ntawm cov ntaub ntawv rau cov ntaub ntawv kub. Yuav kom ua tau raws li kev siv dav ntawm cov yob, peb muab ntau yam khoom siv rau cov mills xws li Nodular Graphite, Adamite Steel, Graphite Steel, Chilled Cast-Iron, High-Speed Steel, High Chrome Cast Iron. Cast Roll Manufacturing thov ntau yam thev naus laus zis, uas suav nrog cov thev naus laus zis metallurgical, cov txheej txheem kho cua sov thiab cov txheej txheem siv tshuab. Peb muaj cov kab ntau lawm rau ob qho tib si cam khwb cia hlau yob thiab cam khwb cia hlau rings. Cast Iron Roll ntau lawm kab muaj ntau qhov nruab nrab zaus rauv (15t, 10t, 5t, 1.5t, thiab 1.0t). Peb kuj muaj cov centrifugal casting tshuab nrog max peev 15 tons. Txoj kab uas hla ntawm peb cov nplhaib thiab lub tes tsho tuaj yeem ncav cuag 1500mm thiab qhov ntev tshaj plaws yog 800mm nrog rau qhov hnyav txog li 6 tons.
Khoom siv
Qib | C | Si | Mn | Cr | Ni | Mo | Hardness (HS) | Tensile zog (MPa) |
TIAB SA 160 | 1.50/1.70 | 0.30/1.00 | 0.80/1.30 | 0.80/2.00 | >0.20 | 0.20/0.60 | 40/60 | >500 |
TIAB SA 180 | 1.70/1.90 | 0.30/0.80 | 0.60/1.10 | 0.80/1.50 | 0.80/1.50 | 0.20/0.60 | 45/60 | >500 |
TIAB SA 190 | 1.80/2.00 | 0.30/0.80 | 0.60/1.20 | 1.50/3.50 | 1.00/2.00 | 0.20/0.60 | 50/65 | >500 |
AD 200 | 1.90/2.10 | 0.30/0.80 | 0.60/1.20 | 0.60/2.00 | 0.50/2.20 | 0.20/0.80 | 55/65 | >500 |
SIB 140 | 1.30/1.50 | 1.20/1.60 | 0.50/1.00 | 0.40/1.00 | - | 0.20/0.50 | 40/60 | >500 |
TSI GS150 | 1.40/1.50 | 1.60/1.70 | 0.60/1.10 | 0.60/1.00 | 0.20/1.00 | 0.20/0.50 | 45/60 | >500 |
TIAB SA 160 | 1.50/1.70 | 0.80/1.50 | 0.60/1.00 | 0.50/1.50 | 1.00/2.00 | 0.20/0.80 | 50/65 | >500 |
TIAB SA 190 | 1.80/2.00 | 0.80/1.50 | 0.60/1.00 | 0.50/2.00 | 0.50/2.20 | 0.20/0.80 | 55/65 | >500 |
IC | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.60/1.20 | - | 0.20/0.60 | 55/68 | ﹥230 |
IC I | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 0.50/1.00 | 0.20/0.60 | 60/72 | ﹥230 |
IC II | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 1.00/2.00 | 0.20/0.60 | 60/78 | ﹥230 |
IB III | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 2.00/3.00 | 0.20/1.20 | 65/80 | ﹥230 |
IB IV | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 3.00/4.80 | 0.20/1.20 | 68/85 | ﹥230 |
IC V | 2.90/3.60 | 0.60/1.20 | 0.40/1.20 | 0.70/1.20 | 3.00/4.80 | 0.20/2.00 | 75/90 | ﹥230 |
SGP I | 2.90/3.60 | 1.40/2.20 | 0.40/1.00 | 0.10/0.40 | 1.50/2.00 | 0.20/0.60 | 45/55 | ﹥230 |
SGP II | 2.90/3.60 | 1.20/2.20 | 0.40/1.00 | 0.20/1.00 | 2.00/2.50 | 0.20/0.80 | 60/70 | ﹥230 |
SIB III | 2.90/3.60 | 1.00/2.20 | 0.40/1.00 | 0.20/1.20 | 2.50/3.00 | 0.20/0.80 | 65/75 | ﹥230 |
SGA I | 2.90/3.60 | 1.20/2.20 | 0.20/0.80 | 0.20/1.00 | 2.50/3.00 | 0.50/1.00 | 60/80 | ﹥230 |
SGA II | 2.90/3.60 | 1.00/2.00 | 0.20/0.80 | 0.30/1.50 | 2.50/4.50 | 0.50/1.00 | 70/82 | ﹥230 |
SGA III | 2.90/3.60 | 1.00/2.00 | 0.20/0.80 | 0.30/1.50 | 2.50/4.50 | 0.50/1.00 | 72/85 | ﹥230 |
HiCr I | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 12.0/15.0 | 0.70/1.70 | 0.70/1.50 | 65/80 | ﹥230 |
HiCr II | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 15.0/18.0 | 0.70/1.70 | 0.70/1.50 | 70/85 | ﹥230 |
HiCr III | 2.30/3.30 | 0.30/1.00 | 0.50/1.20 | 18.0/22.0 | 0.70/1.70 | 1.51/3.00 | 75/85 | ﹥230 |
Ntau lawm
Daim ntawv thov
 |  |
Cim npe nrov: hlau qws dov zeb yob, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized
